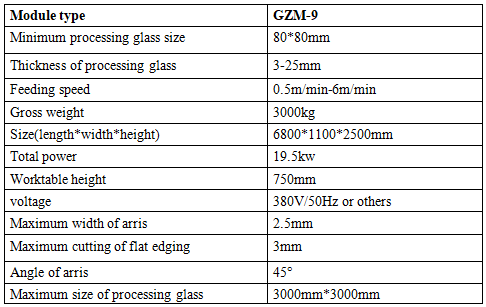

1) Main Technical Parameters
2) Introduction and Characteristics
GZM-9Glass Straight line edging machine is designed for grinding straight line flat edging of different sizes and thickness and 45 degree edge. Coarse grinding, fine grinding, polishing and angle-making can be completed in a procession. Its speed can be widely adjusted by its stepless regulator. Speed alteration speed very smooth. In grinding operation, feeding and operation speed can be adjusted at random. Front rails can be adjusted to fit varied thickness of processed glass. And its advanced structure, hight precision, easy handling, and high efficiency, it is one of indispensable instruments for glass procession.3) Details
| Variable frequency drive motor | High strength, durability, safety, and reliability; speed adjustment is extremely simple and convenient | |
| Worm Gear Reducer |
1. Compact mechanical structure, lightweight design, small size and high efficiency;
2. Excellent heat exchange performance and rapid heat dissipation;
3. High usability, safety and reliability.
|
|
| Transmission Structure | The large-module bevel gear transmission provides high structural strength, durability, and stable operation. | |
| Grinding Head Motor |
1. High-precision matched bearings ensure radial and axial runout ≤ 0.02mm. 2. Insulation Class: F, insulation temperature resistant to 155°C. 3. Protection Grade: IP54, dustproof class 5, waterproof class 4. |
|
| Beams | The front and rear beam inlays are directly cast and formed in one go, which reduces errors during assembly, clamps the glass more steadily, and improves edge grinding accuracy. | |
| Equipment Control Box | The circuit structure is simple and clear, and each line is numbered, making it easy for maintenance personnel to troubleshoot faults and ensure timely product delivery. Emergency stop knobs are located in multiple locations on the machine to ensure the safety of both equipment and personnel. |

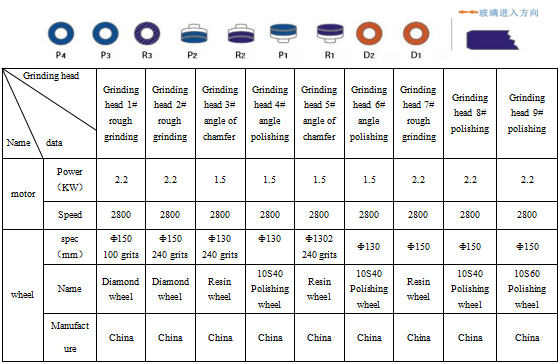

4) Placements of Wheels
