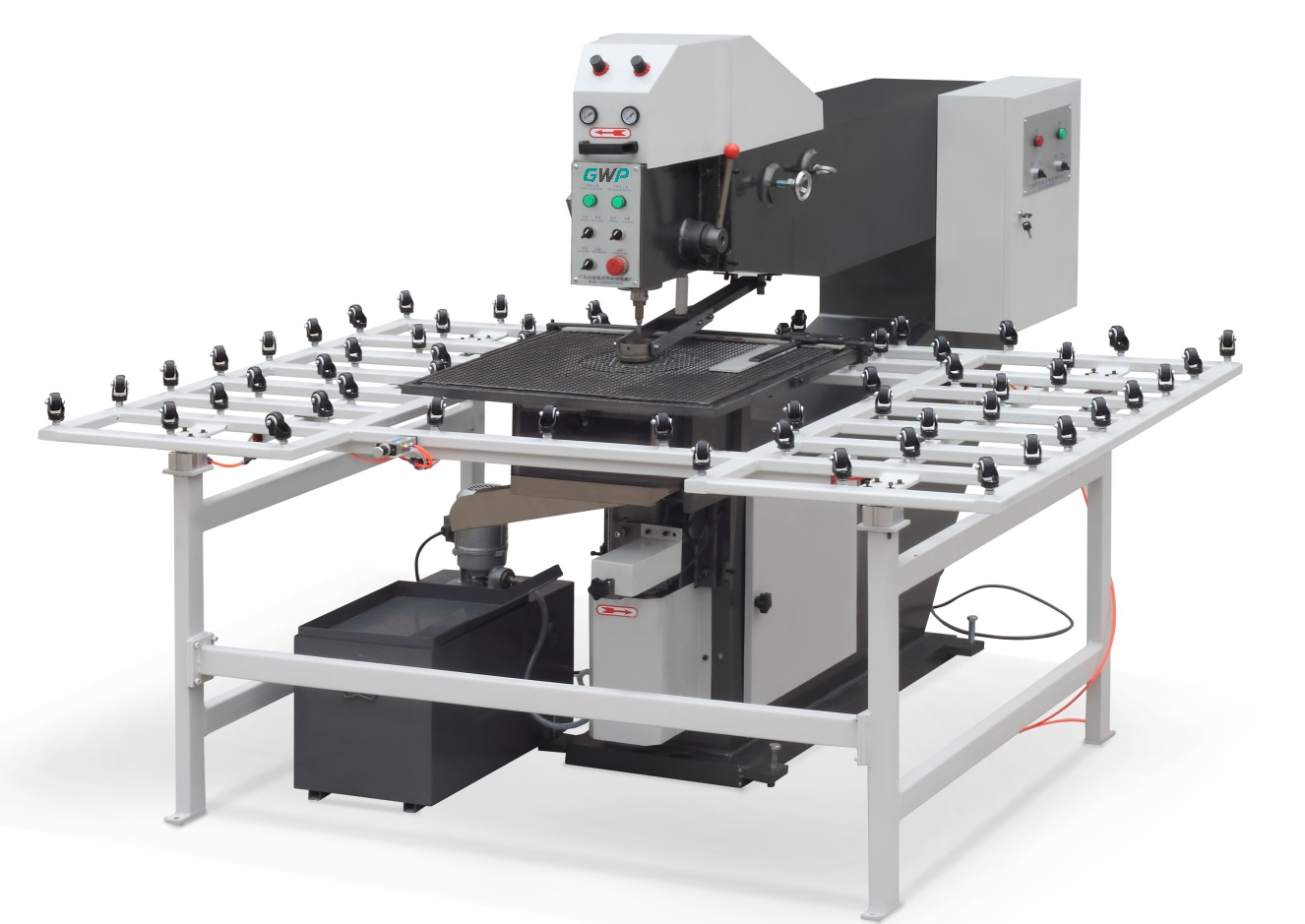

SZK0222 Semi-Auto Glass Drilling Machine
1)Main Technical Parameters
|
Model |
SZK0222 |
|
Glass thickness |
3-20mm |
|
Drilling diameter
|
φ4mm-φ220mm |
|
Maximum size of processed glass
|
2600*1800mm |
|
Power |
2.5KW |
|
Overall size |
2400*1800*1700mm |
|
Gross weight |
950KG |
2) Introduction and Characteristics
SZK0222 glass drill machine, the processed glass is pneumatically gripped, drilling is alternatively done by upper and lower drills. Feeding is automatically operated. Operation platform can be pneumatically elevated for moving glass. It can operate on wide surface.
